REX delivered the solar installation for a private developer at 59-65 Main Avenue, Enfield. The project was completed in July 2026.
The original scope set out individual solar PV systems for each of the nine units, with two system sizes to suit the planned roof layout. The installation photographs below show the finished project.
Private developer
New-build residential project in Enfield.
Nine units
Six larger solar systems and three smaller systems in the original scope.
July 2026
Completed in July 2026.
Original project scope
Solar PV planned for each unit.
The specifications below are the original scope supplied by REX, rather than a separate as-built equipment schedule.
Six units
Five 450 W panels per unit, giving approximately 2.25 kWp of solar PV capacity, with a 2.5 kW inverter per unit.
Three units
Three 450 W panels per unit, giving approximately 1.35 kWp of solar PV capacity, with a 1.5 kW inverter per unit.
GRP roof coordination
Nicholson GRP fixings, installed by REX. The original scope allocated waterproof sealing to the developer's team.
The scope separates the solar mounting work from the waterproof sealing work. That interface needs to be agreed between the solar installer and the roofing team before installation.
From plan to installation
The original roof plan.
The Main Avenue roof plan shows the intended panel layout across the development. It is the original planning document supplied for this case study, not an as-built drawing.
Original roof layout for 59-65 Main Avenue, Enfield.

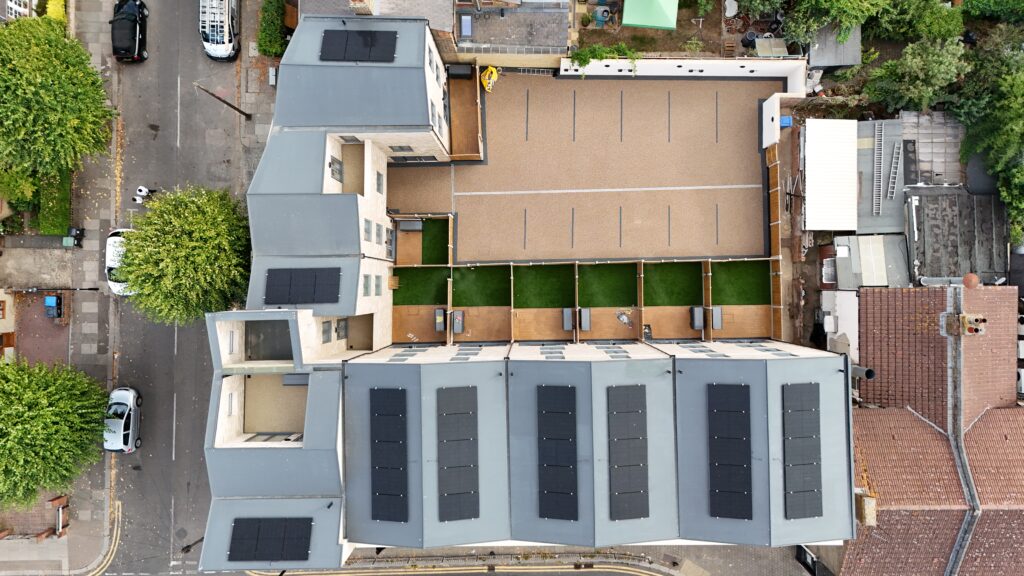

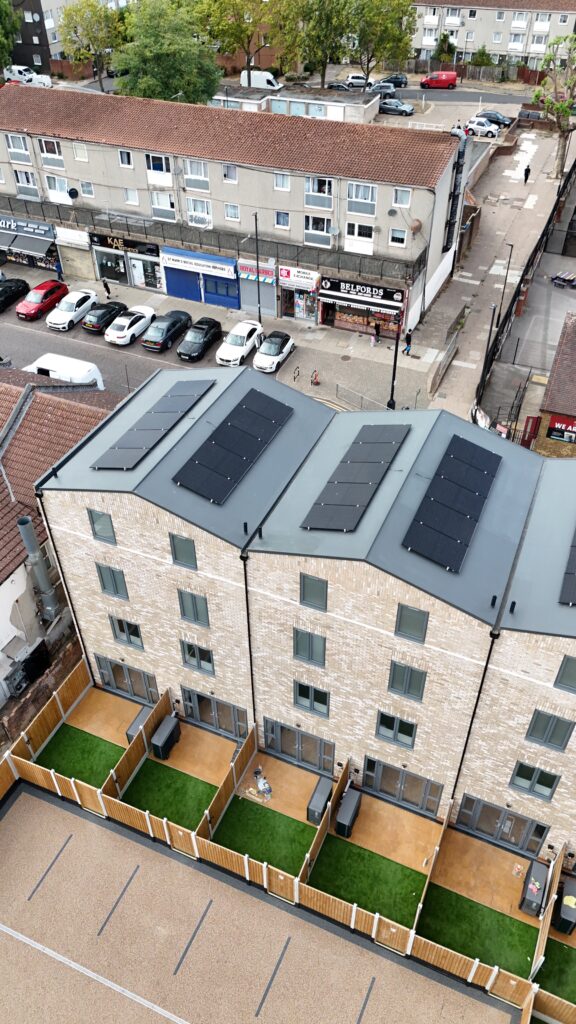

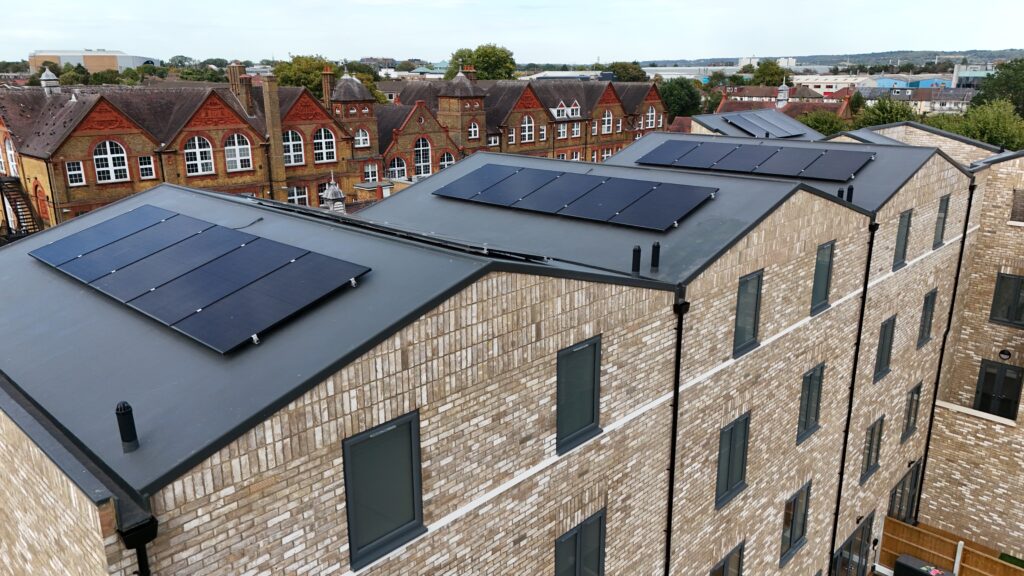

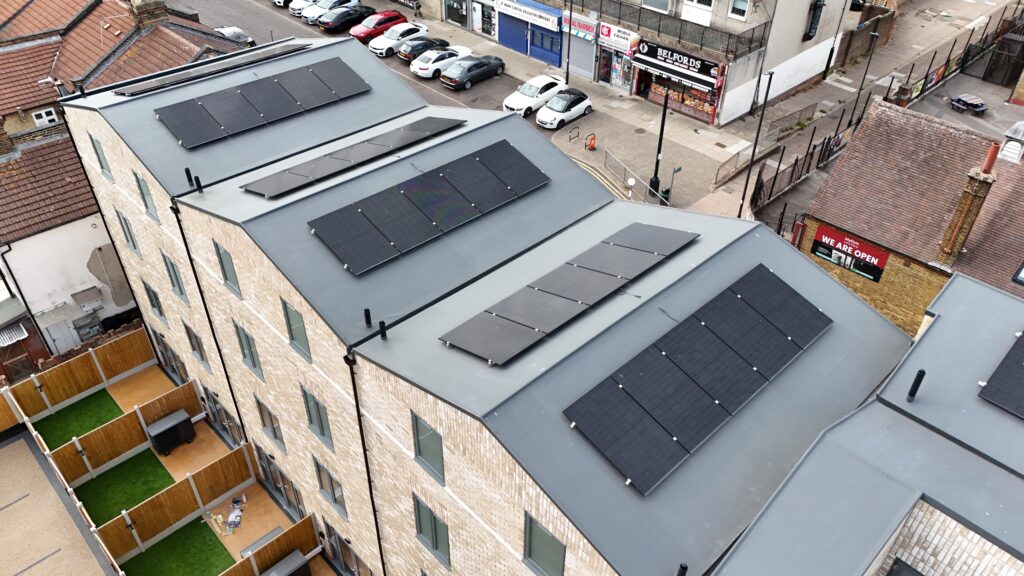

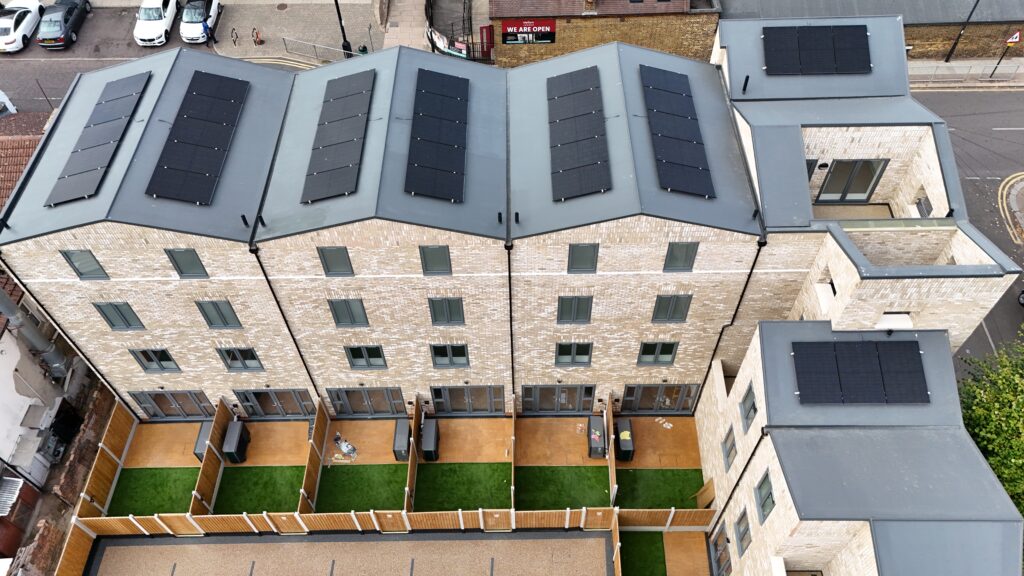

Installation photographs
The Enfield project on site.
Photographs from the existing REX Enfield project gallery.
